Printing Technology
|
|
Print Head
|
Drop On Demand Piezoelectric Head
|
|
No. of print head
|
2-4 heads for Ricoh; 4-6 heads for Toshiba; 1-2 heads for DX5
|
|
Productivity
|
Ricoh Toshiba Dx5
|
|
Production
|
33 sqm/h 32 sqm/h 30 sqm/h
|
|
Quality
|
25 sqm/h 25 sqm/h 20 sqm/h
|
|
Fine Art
|
18 sqm/h 18 sqm/h 15 sqm/h
|
|
Resolution & Software
|
|
Resolutions
|
2880dpi Max.
|
|
Software
|
Standard (SAI photoprint) ;Neostampa Onyx, Caldera, Wassatch as optional
|
|
Media
|
|
Media Width
|
Maximum 1820mm
|
|
Roll &Rigid Specs
|
Roll: Max. dimension 210mm, 40KG; Rigid: 35Kg/sqm;
|
|
Print Width
|
1800mm ;
|
|
Feeding&Taking-up System
|
Auto-Feeding&taking-up system; Front and Back Extension Table
|
|
Inks
|
|
Type
|
Eco Solvent / UV Curable
|
|
Ink Supply System
|
1,5L Large Bulk System with automatic supply system
|
|
Colors
|
Standard CMYK; Lc Lm/white ink opbional
|
|
Ink curing system
|
Dual LED UV Curing System; Extend infrared heating and cooling system for Eco-Solvent Printing
|
|
Dimensions & Weight
|
|
Machine(L*W*H)
|
3160x1130x1330mm
|
|
Package(L*W*H)
|
Main Body: 3330x950x1600mm; 1000Kg;
|
|
Operation Requirements
|
|
Connectivity
|
Hi-Speed USB 3.0
|
|
Power
|
Single Phase, 220VAC±10%, 50/60Hz; 5500W(Machine)
|
|
Environment
|
Temp. 15~32°C; RH 40-65%;
|
|
Warranty
|
|
Warranty
|
1 Year Warranty Standard, More information please consult local dealer
|
|

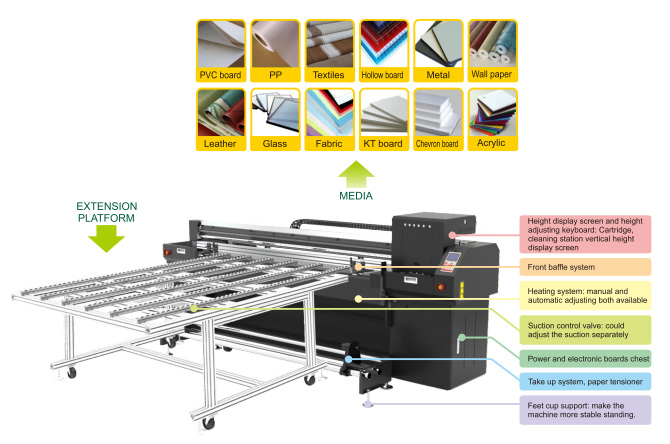

Key Features
► Very smart space with roll and rigid media printing size at 1,8m
► White ink enlarge the artwork value
► VSDT patent award, 5pl to 40pl multi drop size for photographic image quality
► Integrated Auto-Print head Maintenance System for ease operation
► Customized Print head Configuration up to CMYKLcLm/WW for higher quality and more functions
► Automatic media height setting 2400dpi max. Resolution
► Auto media correction and flatten system
► Continuous sheet and roll printing
1) Photographic Image output
VSDT technology delivers a ultra high quality prints with multi drop dots from 5pl to 40pl
2) Preview of your printing job
With this GUI, you can check the printing situation to better arrangement,as well you can get the whole printing history of your printer
3) Optional White ink
White ink printing create more value on your print work, also extend the substrates limit
4) Fiber optic transition system
A1.25G/s data processing capacity, more than enough any resolution image prints. The fiber optic system also has an anti-interfrence ability, which can make sure the stability during high speed output.
5) Automatic Height Adjustment
No more manually measure the thickness and move carriage up and down, the machine not only detect the media thickness and adjust the carriage height automatically. Also the software support a height compensation during printing uneven surface, make sure the printing quality.
6) Creative belt correction system
Make sure the conveyor belt moving correct, engineer create a special mechanical system, avoid any shifting during printing.
7) Media Registration System for both roll and rigid media.
R180E hybrid print on roll and rigid substrates, The media registration pins at both X&Y direction make the operation much easier, For the roll printing, there is a clap at both side can keep the edge in a safety printing.
8) Anti-crash system
This feature can detect an obstruction on the printing surface then immediately stop the carriage movement.
9) LED UV Curing System
Imported high power LED UV curing system, Dual lamps configured.
