Locor Deluxejet 1830UV (RTR)

Üretici: Locor
Baskı Malzemesi Genişliği
1600/1820 mm
Mürekkep
5 Renk (CMYK-W) UV INK
Yazıcı Kafası
3 adet EPSON 4720
Baskı Hızı
16 m2/h
9,8 m2/h
7,2 m2/h
˅ Detaylı Bilgi ˅
Fiyat için Arayın
+ -

Model

Deluxejet1830UV

Deluxejet1830/SUV

Print parameter

Print head

Epson 4720

Epson DX7

Print head number

3 PCS

3 PCS

Print head height

1.8mm-4mm

1.8mm-4mm

Print head cleaning

Automatically cleaning (strong, mild, weak), Flash, Moisturized

Print direction

Uni-direction / Bi-direction

Printing mode

Color White Color/Color White/White Color/Color1/Color2(LED UV)

Print speed

Draft Mode

16m2/h

9m2/h

Standard Mode

9.8m2/h

6.5m2/h

Accuracy Mode

7.2m2/h

3.85m2/h

Ink

Ink type

UV ink

Ink supply

Continuous ink supply system+ ink shortage alarm

Ink colors

K\C\M\Y\W

Ink tank volume

1500ML for each color

Print media

Print wide

1820mm

Media type

Transparent glass paste, Transparent pvc film,3P cloth, wallpaper, leather

Media loading weight

Max 80kg

Printer configure

Take up system

High-power automatic take up system

Front-load quality inspection

LED light guide plate

Operation system

Win 7 / Win 10

Computer requirement

CPU:i5 Memory:8G

Data transmission

1000M network port

RIP software

Maintop 6.0 / PhotoPrint 19

Voltage

AC-220V,50Hz/60Hz 10A

Power

1500W

Noise

Standby<32dB Work<75dB

Package size/weight

Printer size(L*W*H)

3124*950*1605mm L*W*H)

Net weight

270 Kg

Package size (L*W*H)

3200*1160*680mm (LxWxH)

Gross weight

320 Kg





Print head

Epson DX7 print head

1 .EpsonDX7 printhead has 8 rows of nozzles, 180 nozzles each row, and 1440 nozzles in total, adopt 2.5pl gray-scale variable ink drop technology,with delicate printing quality and photographic level effect.

2.Epson Dx7 print head can be used in UV, showing its good compatibility, powerful function and more extensive application.



4720 print head

1 .Epson 4720 industrial grade print head has 8 rows of nozzles, 400 nozzles each row, and 3200 nozzles in total, which greatly improved the printing speed.

2. Adopt 5pl gray-scale variable ink drop technology, the resolution can reach 3200dpi of high-definition digital photographic quality, with delicate printing quality and photographic level effect.

3. Epson 4720 print head can be used in UV, showing its good compatibility, powerful function and more extensive application.

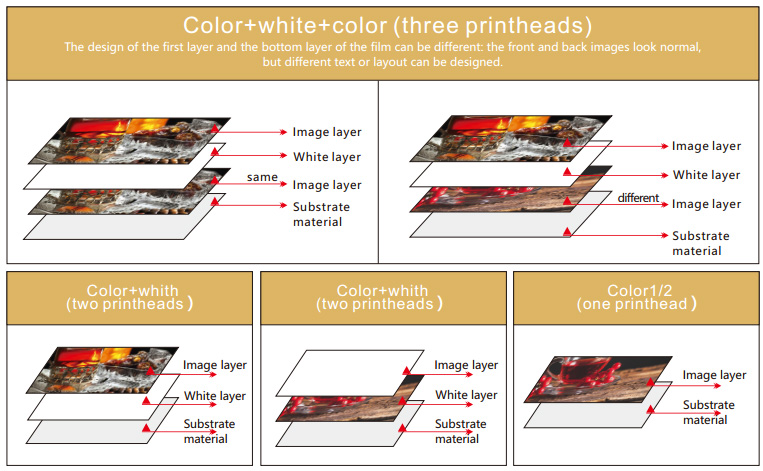

Fourl imaging modes

The multi-layer imaging technique has been provided to the user as a standard function, and there are three different modes to meet the various needs of customers;

Color+white+color (three printheads)

The design of the first layer and the bottom layer of the film can be different: the front and back images look normal,

but different text or layout can be designed.



1.The multi-layer imaging technique can quickly produce the relief and other 3D image effects on the printing materials, with the sense of carving and the sense of concave and convex within reach. 2.This function can set each part independently with the most appropriate printing mode, which not only helps to improve the production capacity, but also maintains the best quality output of each printing job.





The advanced technology is the guaranteed for continuous printing of rich and colorful image and output effects



High quality mechanical components ensure stable printing

1 .Advanced THK noiseless guide rail;

2. High precision aluminum alloy integrated beam;

3. Double Leadshine servo motor control;

4. High quality mechanical components ensure the smooth operation, high speed and accuracy of the machine in the printing process.



Flexible ink, Image bendable and foldable

Adopted flexible UV ink can prevent the image from cracking when the substrate is bent.



Secondary ink cartridge heating device

UV ink can achieve best results at 40 ℃. The secondary ink cartridge heating device ensures the better ink fluency during printing, and it is not easy to fly or break the ink, and reach the best color.



White ink supports various of materials

White ink is applied to various of applications, including printing on color and transparent materials, especially in window decoration.



 Front-load quality inspection device -LED light guide plate

The front-load quality detection device is LED light guide plate, which is convenient to check the image quality more accurately and improve the working efficiency in the printing process.



Large capacity ink tank continuous ink supply system + ink shortage alarm

The number of adding ink can be reduced significantly that way for 1500ml capacity ink tank, improved working efficiency, ink shortage alarm, remind users to add ink immediately, avoid to disruptions during printing



White ink mixer

The white ink mixer above the ink cartridge can effectively prevent precipitation of the white ink and makes the printing process more smoothly



UV lamp intensity adjustable - According to various of substrate materials.

The UV lamp shutter on both sides of the nozzle, can easily adjust the intensity of the UV lamp by the cooling machine, the thermal sensitive materials and self-adhesive materials can be better handle, and control the volatilization of UV ink odor effectively



Application

Model

Deluxejet1830UV

Deluxejet1830/SUV

Print parameter

Print head

Epson 4720

Epson DX7

Print head number

3 PCS

3 PCS

Print head height

1.8mm-4mm

1.8mm-4mm

Print head cleaning

Automatically cleaning (strong, mild, weak), Flash, Moisturized

Print direction

Uni-direction / Bi-direction

Printing mode

Color White Color/Color White/White Color/Color1/Color2(LED UV)

Print speed

Draft Mode

16m2/h

9m2/h

Standard Mode

9.8m2/h

6.5m2/h

Accuracy Mode

7.2m2/h

3.85m2/h

Ink

Ink type

UV ink

Ink supply

Continuous ink supply system+ ink shortage alarm

Ink colors

K\C\M\Y\W

Ink tank volume

1500ML for each color

Print media

Print wide

1820mm

Media type

Transparent glass paste, Transparent pvc film,3P cloth, wallpaper, leather

Media loading weight

Max 80kg

Printer configure

Take up system

High-power automatic take up system

Front-load quality inspection

LED light guide plate

Operation system

Win 7 / Win 10

Computer requirement

CPU:i5 Memory:8G

Data transmission

1000M network port

RIP software

Maintop 6.0 / PhotoPrint 19

Voltage

AC-220V,50Hz/60Hz 10A

Power

1500W

Noise

Standby<32dB Work<75dB

Package size/weight

Printer size(L*W*H)

3124*950*1605mm L*W*H)

Net weight

270 Kg

Package size (L*W*H)

3200*1160*680mm (LxWxH)

Gross weight

320 Kg





Print head

Epson DX7 print head

1 .EpsonDX7 printhead has 8 rows of nozzles, 180 nozzles each row, and 1440 nozzles in total, adopt 2.5pl gray-scale variable ink drop technology,with delicate printing quality and photographic level effect.

2.Epson Dx7 print head can be used in UV, showing its good compatibility, powerful function and more extensive application.



4720 print head

1 .Epson 4720 industrial grade print head has 8 rows of nozzles, 400 nozzles each row, and 3200 nozzles in total, which greatly improved the printing speed.

2. Adopt 5pl gray-scale variable ink drop technology, the resolution can reach 3200dpi of high-definition digital photographic quality, with delicate printing quality and photographic level effect.

3. Epson 4720 print head can be used in UV, showing its good compatibility, powerful function and more extensive application.





Fourl imaging modes

The multi-layer imaging technique has been provided to the user as a standard function, and there are three different modes to meet the various needs of customers;

Color+white+color (three printheads)

The design of the first layer and the bottom layer of the film can be different: the front and back images look normal,

but different text or layout can be designed.



1.The multi-layer imaging technique can quickly produce the relief and other 3D image effects on the printing materials, with the sense of carving and the sense of concave and convex within reach. 2.This function can set each part independently with the most appropriate printing mode, which not only helps to improve the production capacity, but also maintains the best quality output of each printing job.





The advanced technology is the guaranteed for continuous printing of rich and colorful image and output effects



High quality mechanical components ensure stable printing

1 .Advanced THK noiseless guide rail;

2. High precision aluminum alloy integrated beam;

3. Double Leadshine servo motor control;

4. High quality mechanical components ensure the smooth operation, high speed and accuracy of the machine in the printing process.



Flexible ink, Image bendable and foldable

Adopted flexible UV ink can prevent the image from cracking when the substrate is bent.



Secondary ink cartridge heating device

UV ink can achieve best results at 40 ℃. The secondary ink cartridge heating device ensures the better ink fluency during printing, and it is not easy to fly or break the ink, and reach the best color.



White ink supports various of materials

White ink is applied to various of applications, including printing on color and transparent materials, especially in window decoration.



 Front-load quality inspection device -LED light guide plate

The front-load quality detection device is LED light guide plate, which is convenient to check the image quality more accurately and improve the working efficiency in the printing process.



Large capacity ink tank continuous ink supply system + ink shortage alarm

The number of adding ink can be reduced significantly that way for 1500ml capacity ink tank, improved working efficiency, ink shortage alarm, remind users to add ink immediately, avoid to disruptions during printing



White ink mixer

The white ink mixer above the ink cartridge can effectively prevent precipitation of the white ink and makes the printing process more smoothly



UV lamp intensity adjustable - According to various of substrate materials.

The UV lamp shutter on both sides of the nozzle, can easily adjust the intensity of the UV lamp by the cooling machine, the thermal sensitive materials and self-adhesive materials can be better handle, and control the volatilization of UV ink odor effectively



Application
